North American F-86F Sabre



5319 - Local / Place: Museu do Ar / Air Museum - Alverca; Data / Date: 27.05.2000

5361 - Local / Place: Base Aérea 1 - Pólo de Sintra do Museu do Ar / Air Base 1 - Sintra's pole Air Museum
Data / Date: 01.07.2001

North American F-86F Sabre, click to open in large format
5301 - F-86F-35-NA
c/n 191-864 MDAP 52-5168

North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format

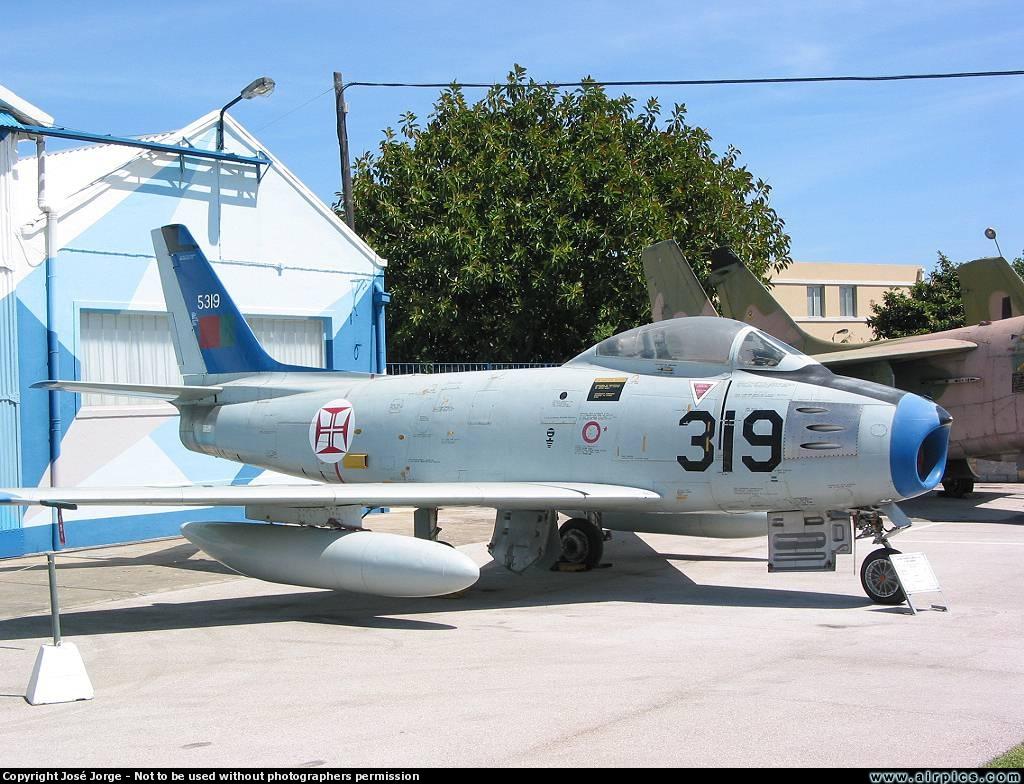

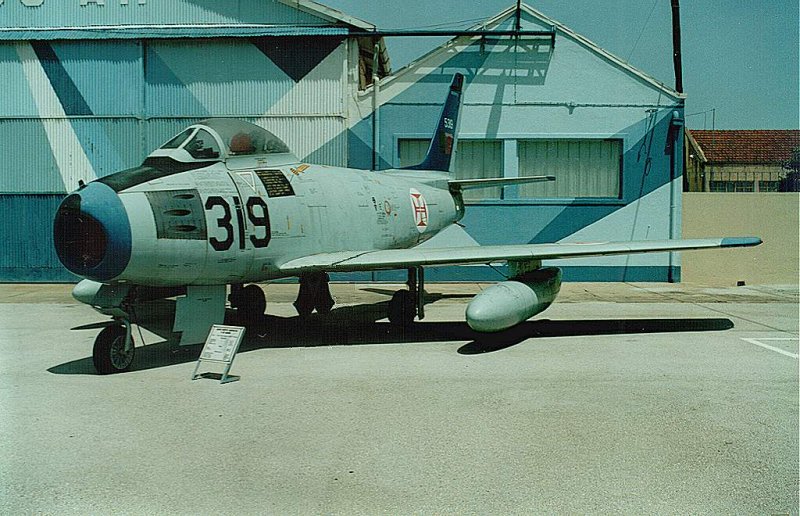

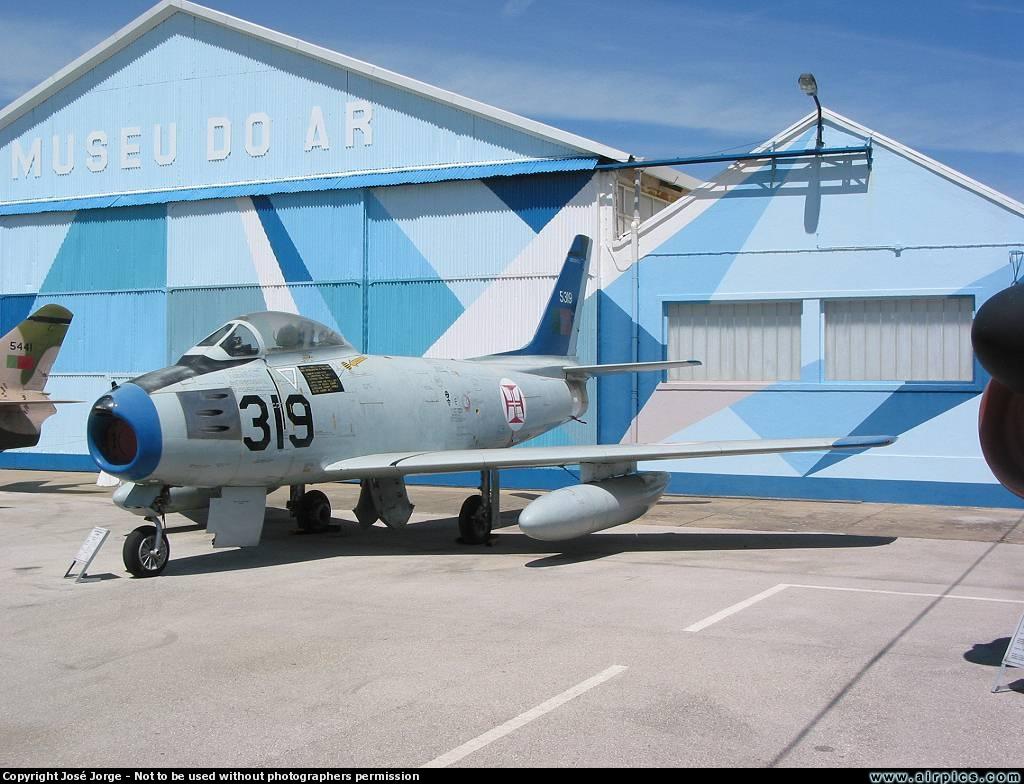

5319 - F-86F-35-NA c/n 191-958 - MDAP 52-5262

North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format
North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format
5320 (fake registration) ex-5338 - F-86F-35-NA c/n 191-900 - MDAP 52-5204

North American F-86F Sabre, click to open in large format
5350 - F-86F-35-NA
c/n 202-39 MDAP 53-1110

North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format North American F-86F Sabre, click to open in large format

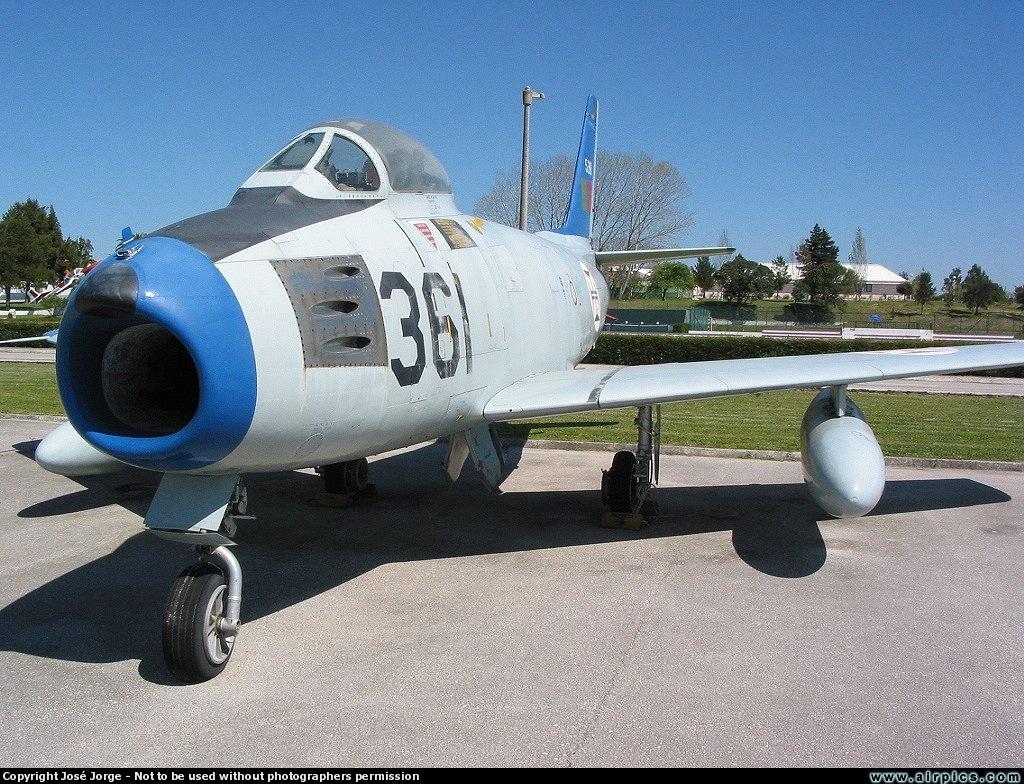

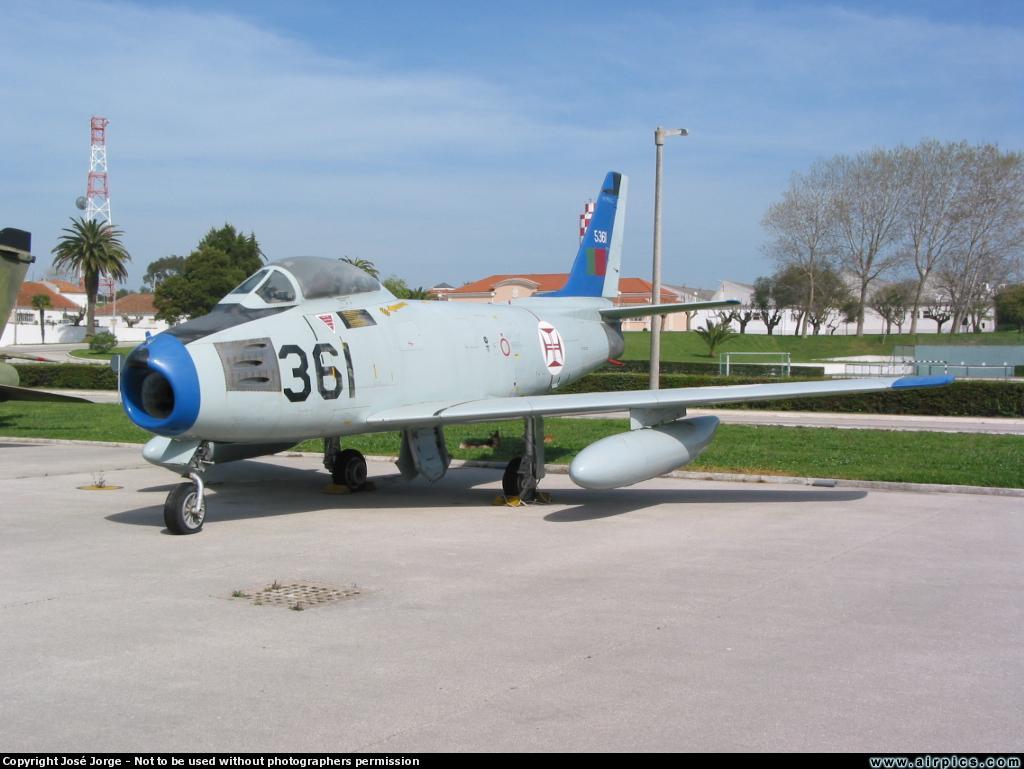

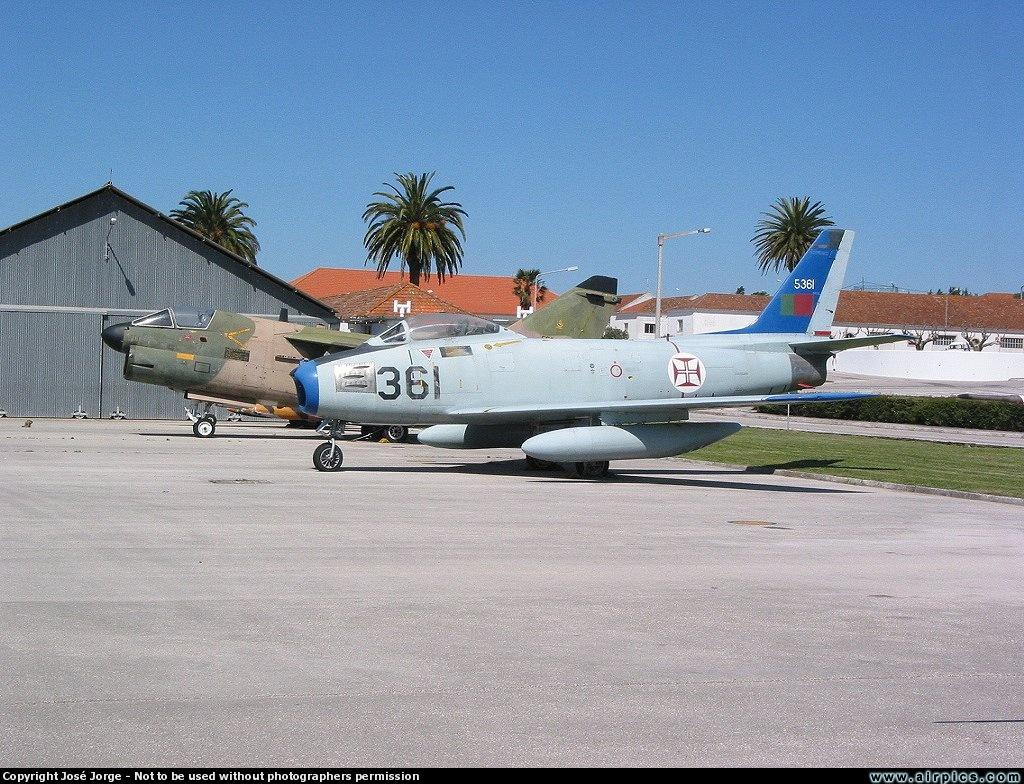

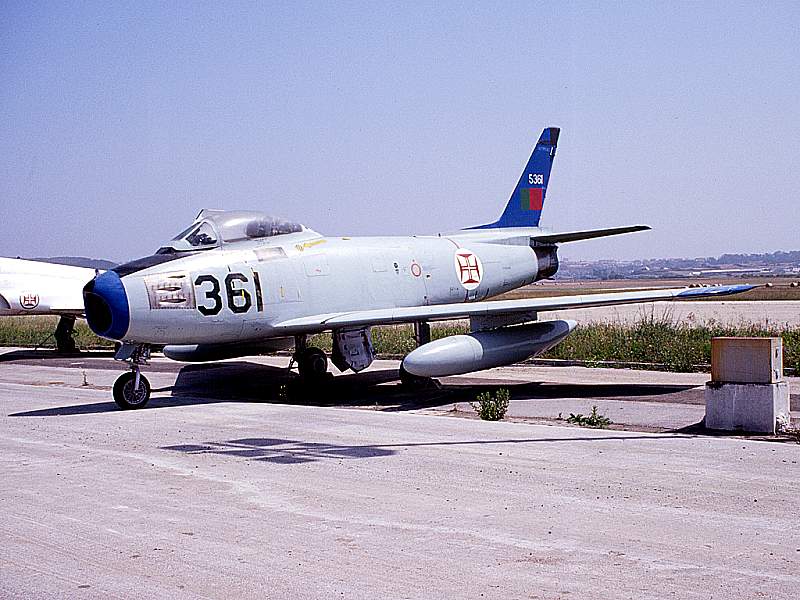

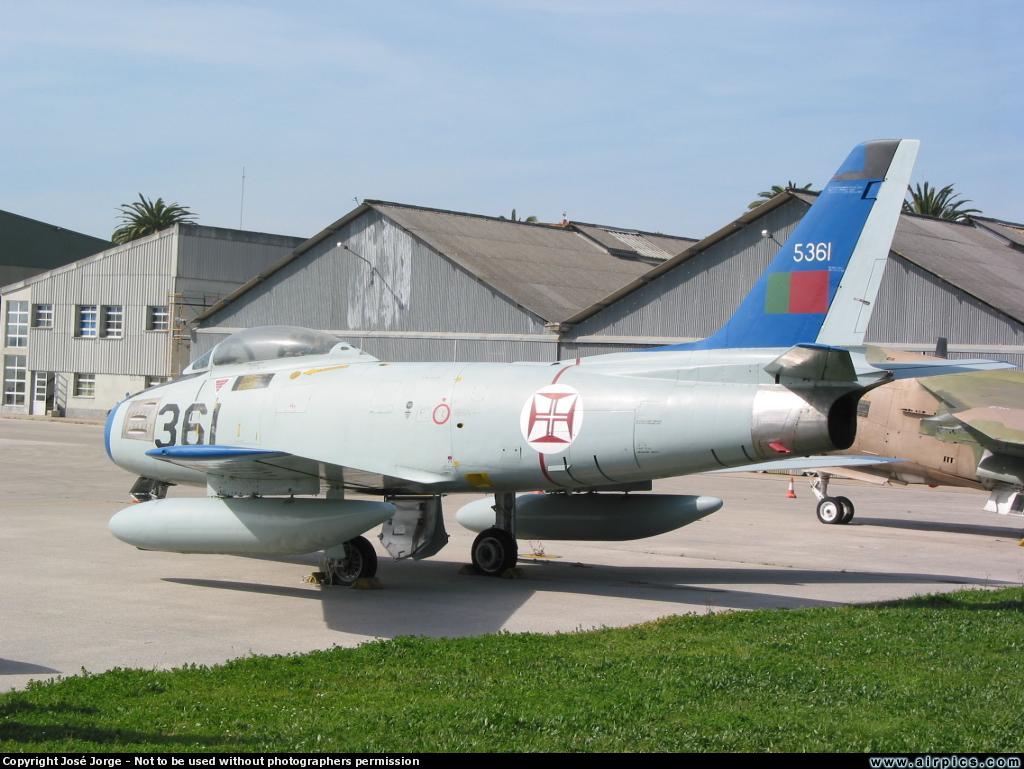

5361 - F-86F-35-NA c/n 202-133 - NOR 53-1204

Dados técnicos / Technical data
Motor / Engine:General Electric J-47-GE27
Potência / Power:2.700 kgf
Envergadura / Span:11,91 mt
Comprimento / Length:11,44 mt
Altura / Height:4,49 mt
Superfície alar / Wing area:28,83 m2
Velocidade máxima / Maximum speed:1.090 km/h
Raio de acção / Range:790 km
Tecto / Ceiling:15.117 mt
Peso vazio / Empty weight:5.045 kg
Peso equipado / Equiped weight:6.856 kg
Peso máximo / Maximum weight:9.348 kg
